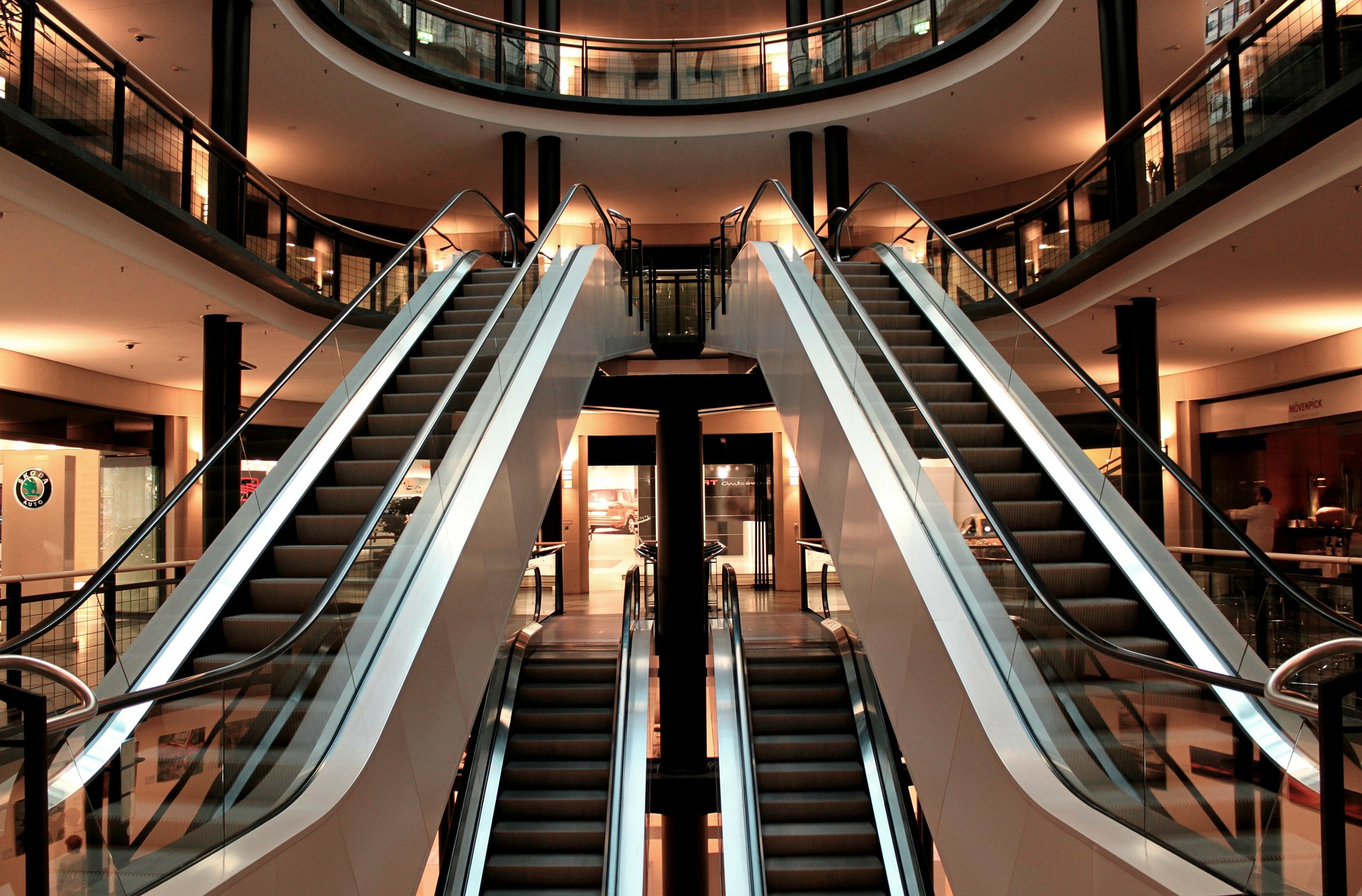

Escalator

Divisions

Improve the people’s flow in the building helping them to reach other floors.

Related project

Step Width	A	600	800	1000
Exterior Width	B	1140	1340	1540
Construction Opening	C	1200	1400	1600
Handrail Center Distance	D	838	1038	1238
Floor Slab Opening	E	1838	2038	2238
Supporting Length	I	1140	1340	1540
Traveling Height (H≤6m)	Inclination α	30°	35°
	a	2198	2242
	b	1.732xH	1.428xH
	c	2567	2663
	d	4100	4300
	e	4000+1.732xS	3300+1.428xS
	H1	N/A	N/A
	L1	N/A	N/A
Traveling Height (6m≤H≤9m)	Inclination α	30°	N/A
	a	2688	N/A
	b	1.732xH	N/A
	c	3057	N/A
	d	4900	N/A
	e	4000+1.732xS	N/A
	H1	It depends on the construction drawing	N/A
	L1	It depends on the construction drawing	N/A
