Technical Description：

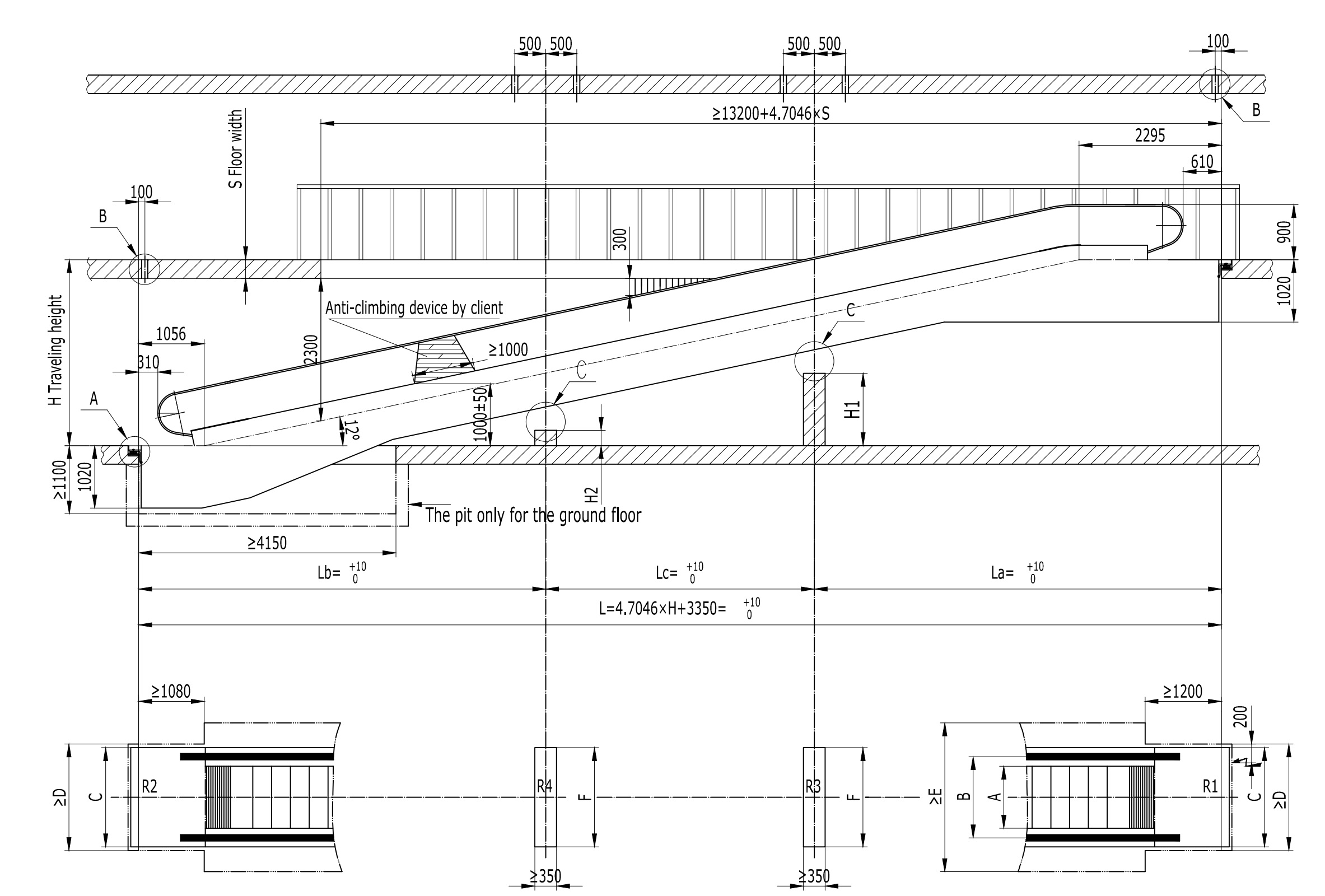

1. This drawing is based on the dimension mm. It applies to the traveling height less than or equal to 9m and speed at 0.5m/s.

2. If dual drive is required, the upper truss should be extended for 417mm more.

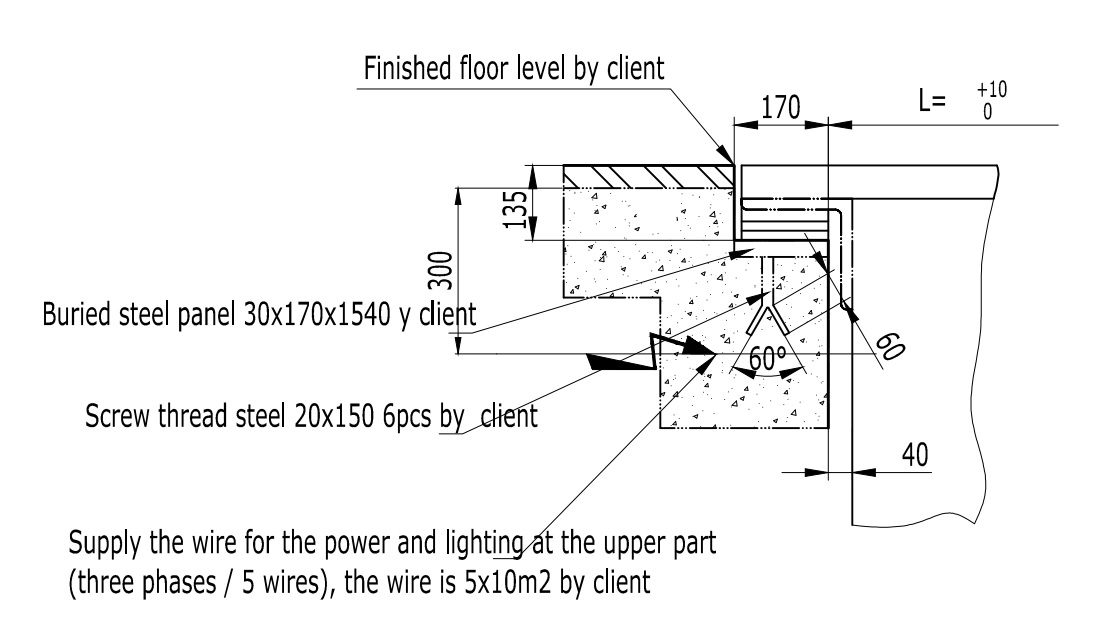

3. The driving power is Three Phase AC 380V 50HZ.

4. When the moving walks installed at the second floor or above, the pit will be no need and the substructure should be symmetrical with the superstructure.

5. There should be a fully open area at the entrances and exits of the moving walks and the width should be no less than 1238mm, the depth (From the handrail steering end to the barrier) should be no less than2500mm.

6. The distance between the handrail center line and any barriers should be no less than 500mm. If the distance is less than 500mm, a vertical shield with no sharp edges should be provided above the handrail.
