MATIZ Latest Freight Elevator, Special Design For Carrying Pigs
Date : 2020-10-14     Click : 861

In order to improve the utilization rate of space and create greater economic benefits, multi-floor feeding mode has become the preferred way by many farmers. However, transporting and moving livestock has become the difficult problem, especially large livestock like pigs.

The transportation of livestock will face many key issues such as environmental factors in the car, sewage, and safety, etc., which need to be overcome. Thus, MATIZ R & D team has designed a special freight elevator for carrying pigs and other livestock.

1)How to ensure fresh air in the car?

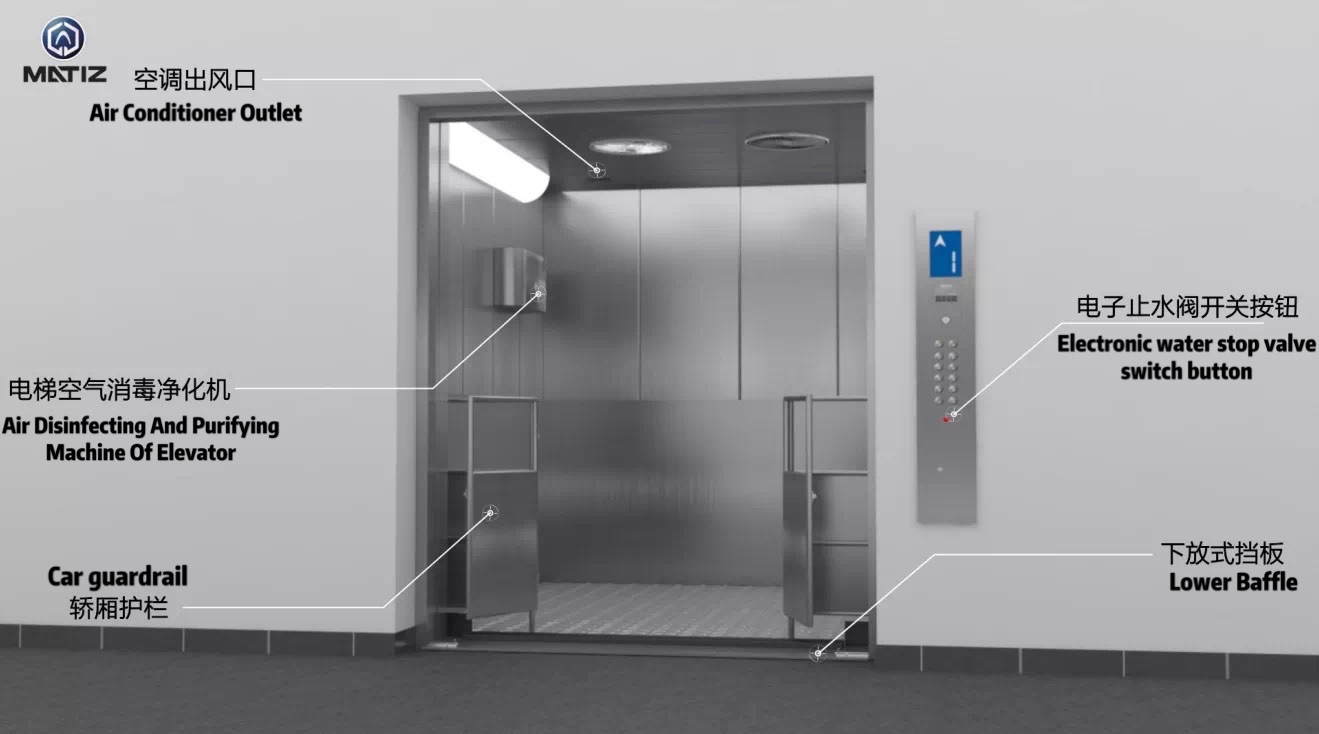

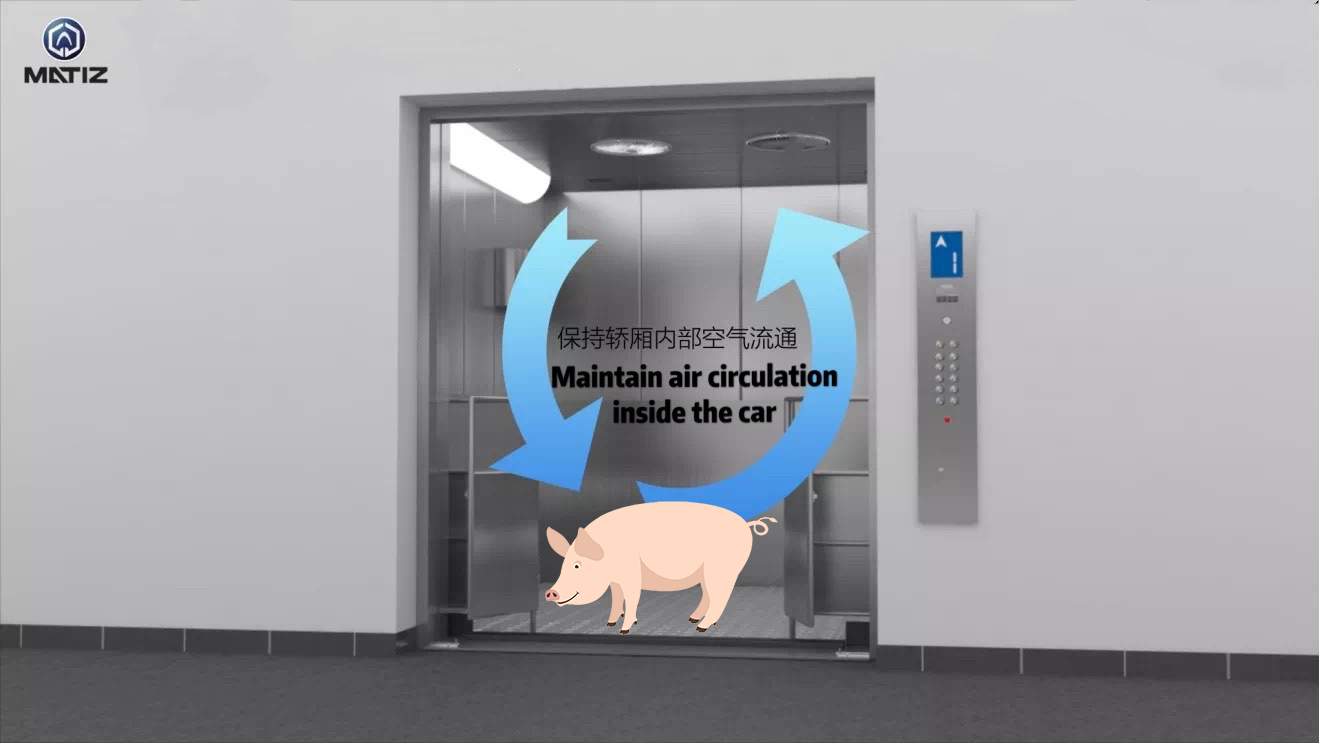

In order to ensure the rapid circulation of air in the car, powerful ventilation equipment and air conditioning are installed on the top of the car.


2)How to sterilize?

Considering that the internal environment of the car is easy to breed bacteria, according to the needs of farmers, equipped with ultraviolet germicidal lamps or air disinfection purifiers.


3)How to keep the car clean?

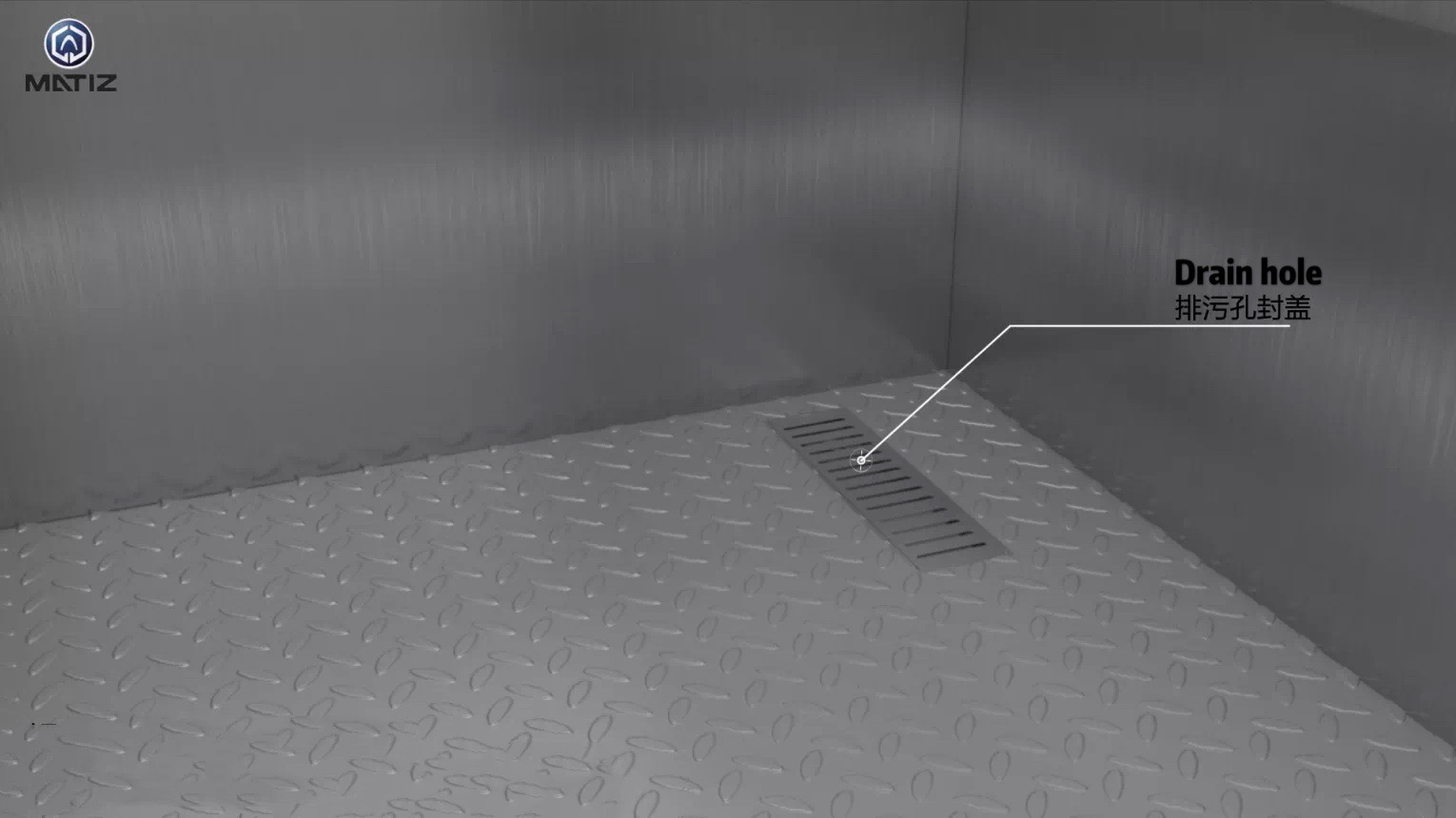

a. A drain hole is added in the car, and the drain hole and the sewage pipe on the bottom of the car are equipped with a proper amount of water storage space, which can store a proper amount of sewage when the elevator is running.

b. The water storage space on the bottom of the car is equipped with an electronic water stop valve device. When the first floor is cleaned, the water stop valve can be opened to flush.

c. A waterproof slope is set at the landing door sill to prevent dirt and sewage from entering the hoistway during cleaning.


4)How to ensure ride safety?

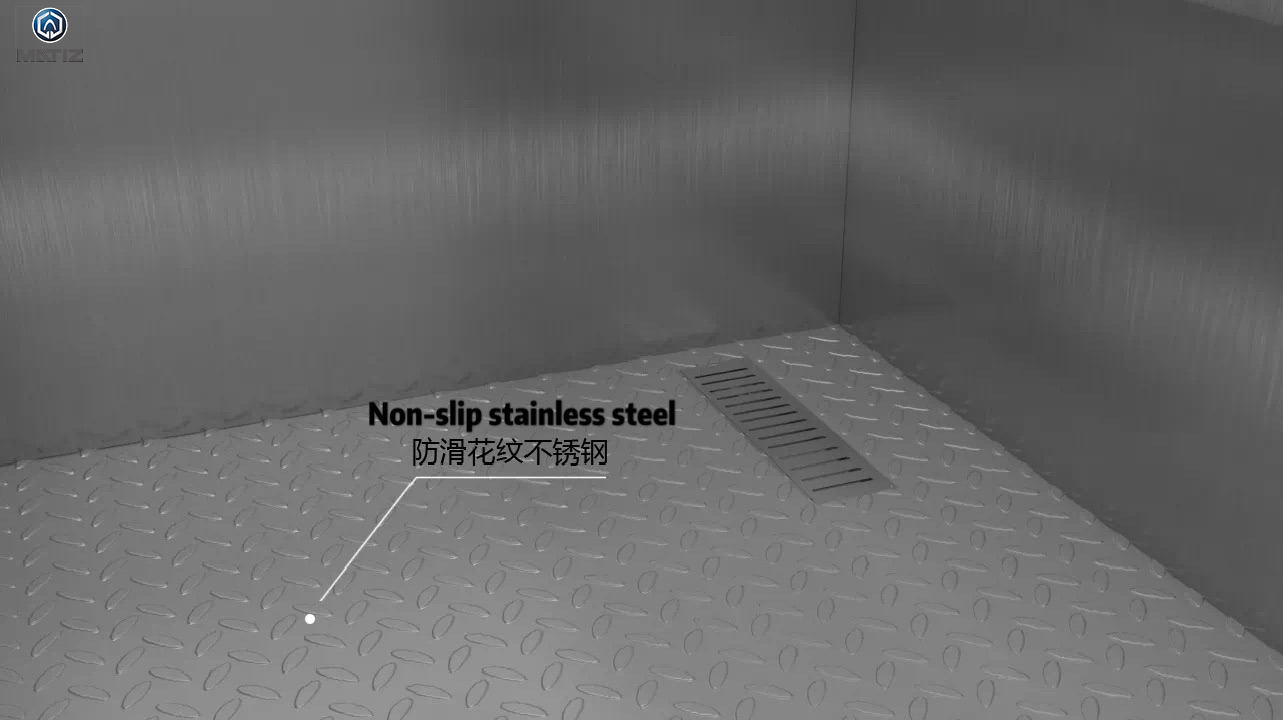

a. Since the inside of the car is prone to slipping due to the accumulation of water, the car floor is made of non-slip patterned stainless steel, which can effectively prevent falls caused by water slipping on the ground.

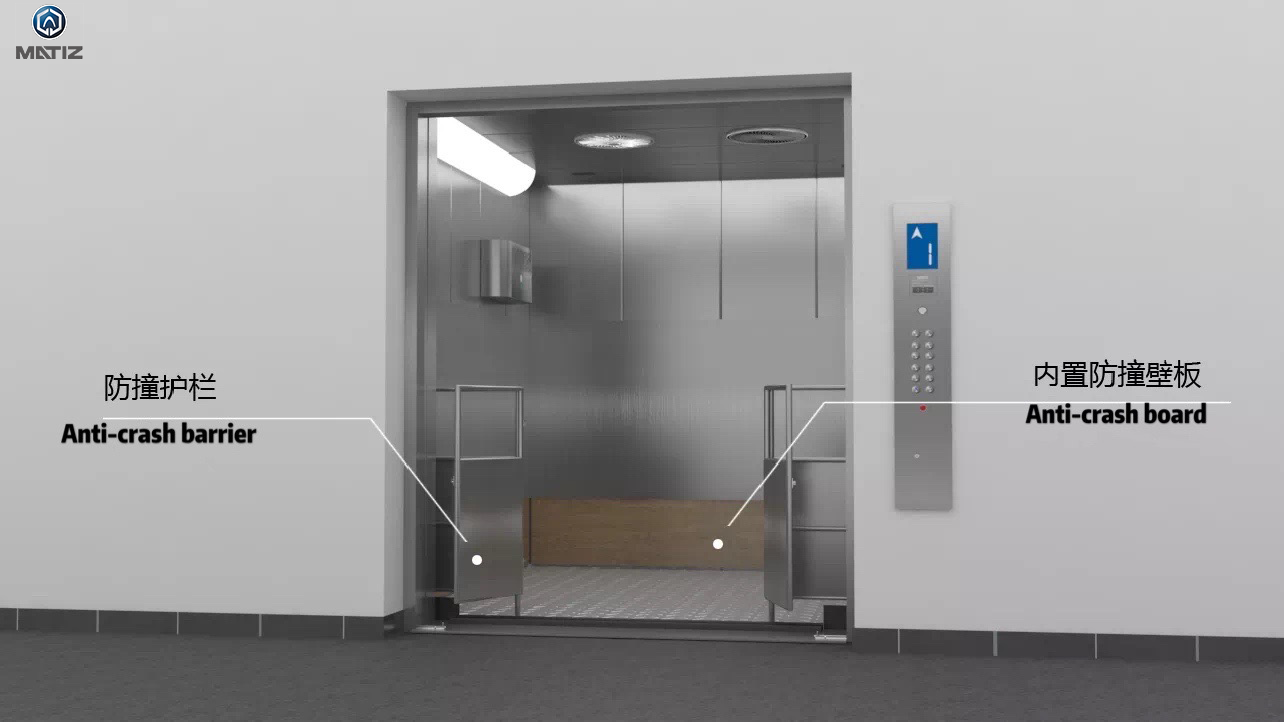

b. Install a protective board on the inside of the car, and install an anti-collision guardrail at the door opening. The strength of the wall panels is increased on all sides of the car to prevent the pig from hitting the car door when the elevator is running and causing elevator failure.

c. The car door is set with a lowered baffle, which can prevent pigs from stepping into the gap when entering and exiting the elevator. At the same time, it can block the light curtain as well as block the elevator door from closing, and prevent accidents caused by pinching.

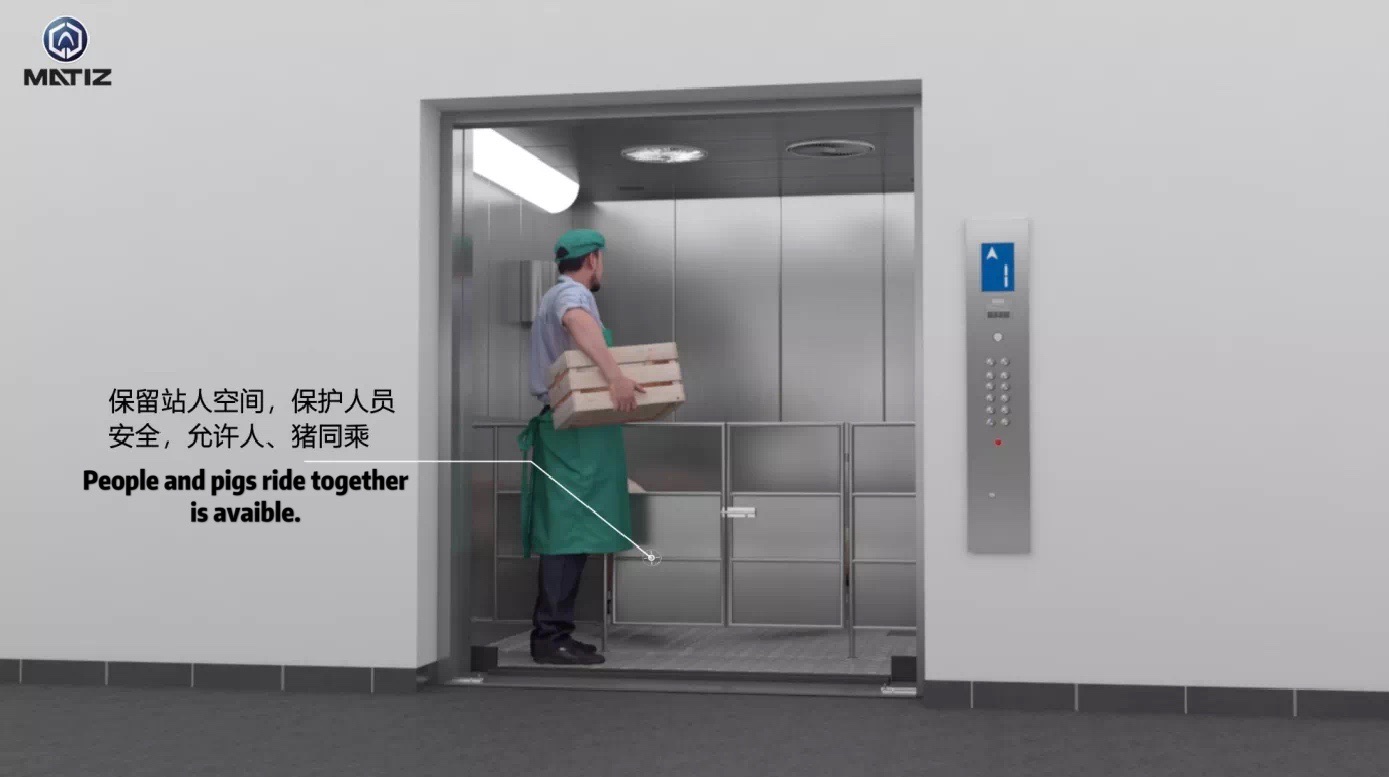

e. The guardrail space can be set and adjusted. When people and goods are on the same board, the guardrail position can be adjusted to reserve space for standing people and effectively protect the safety of personnel.

d.The Internet of Things is monitored in real time 24 hours a day, and if a fault is found, it will be dealt with immediately.


Compared with the traditional freight elevator, the above problems can be solved well.
